Raspberry Pi

Raspberry Pi Active Cooling PWM Fan Protection, Inbuilt fan case, Red-White SC1159

(No reviews yet) Write a Review
$16.00
$14.99
MPN
SC1159
UPC:
5056561803340
Condition:
New
Color: Red-White
Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 2.79 CFM
Maximum fan speed: 8000 RPM +/- 15%
Case material:: ABS (base, frame, lid) and PC (fan assembly)
Delivery by ,
If ordered within hours and minutes
Not Shipping to ?
5 customers are viewing this product

RASPBERRY PI 5 CASE

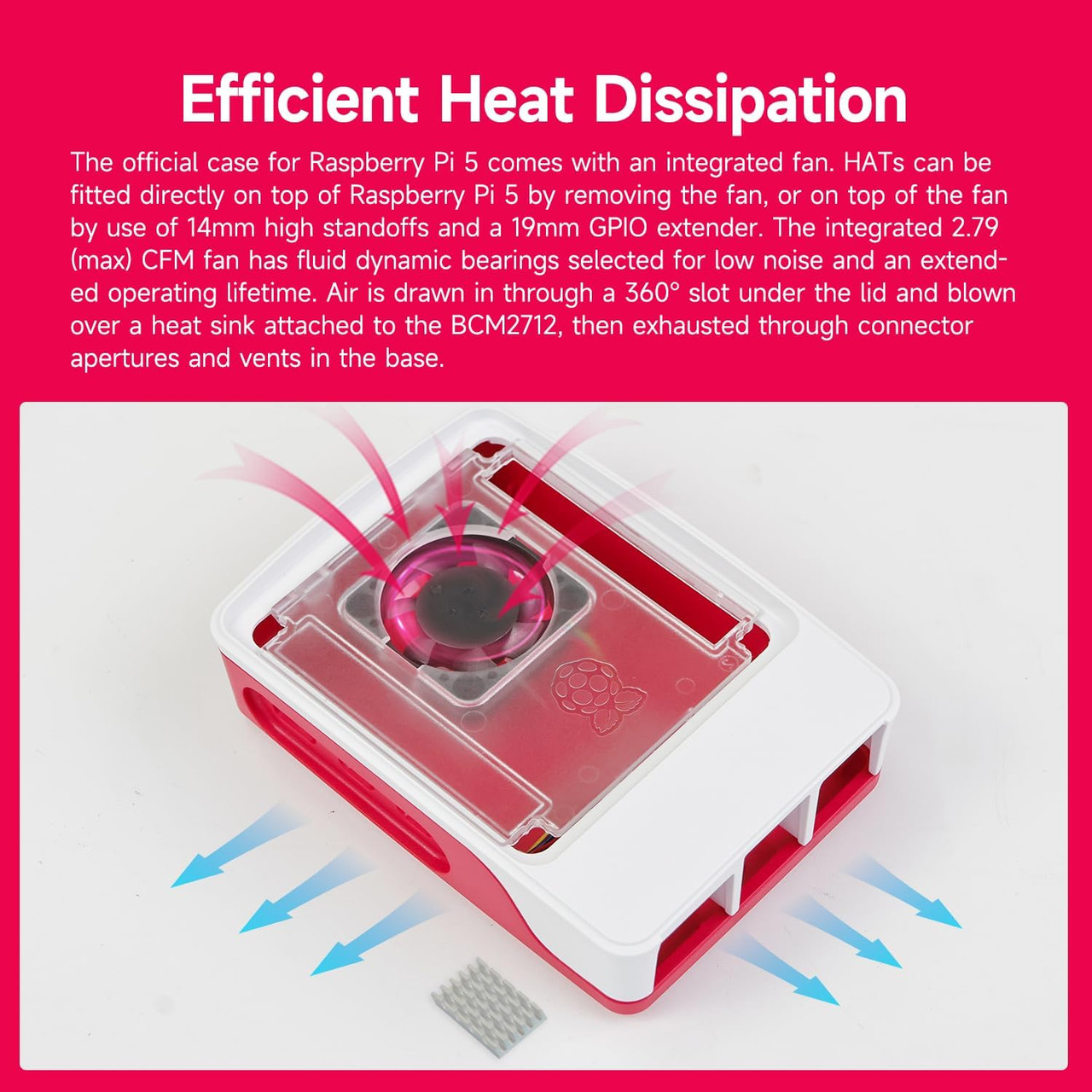

The Raspberry Pi 5 case is made of ABS construction with cut-outs for the dual HDMI, Audio/Video, USB, Ethernet ports, as well as the USB-C power connector and access to the microSD card. The status LED can be easily visible through the rubber reflector. An optional clip-on lid can be removed to provide access to your Raspberry Pi's GPIO pins or connect a HAT. The case is a refinement of the Raspberry Pi 4 case, with improved thermal features to support the higher peak power consumption of Raspberry Pi 5. It integrates a variable-speed fan which is controlled by a dedicated connector on the Raspberry Pi 5 PCB. The case is available in Pi’s signature red-white and black-grey combination.

FEATURES

  • Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
  • 12mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
  • Easily removable lid exposes fan and breakout slot for cables and GPIO
  • Integrated mounting features allow for case stacking
  • HATs can be mounted to the enclosure with stand-offs and GPIO header extenders(not included)
  • Four silicone feet for the case are included

WARNINGS

  • This product should only be used with Raspberry Pi 5.
  • This product should only be operated in a well ventilated environment, and the case should not be covered.

SAFETY INSTRUCTIONS

To avoid malfunction or damage to this product, please observe the following:

  • Do not expose to water or moisture, or place on a conductive surface while in operation.
  • Do not expose to heat from any external source; the Raspberry Pi Case for Raspberry Pi 5 is designed for reliableoperation at normal ambient temperatures.
  • Take care while handling to avoid mechanical or electrical damage to the fan and connectors.
  • Avoid touching or handling the fan while it is powered.
Color: Red-White
Input voltage: 5V DC supplied via four-pin fan header on Raspberry Pi 5
Fan speed control: Pulse width modulation control with tachometer
Maximum airflow: 2.79 CFM
Maximum fan speed: 8000 RPM +/- 15%
Case material:: ABS (base, frame, lid) and PC (fan assembly)
