ASRock Rack

ASRock Rack 4U36L6E-ICX2/2T High Performance 4U 36 Bay Dual Intel Xeon Scalable Socket 4189 Storage Server

(No reviews yet) Write a Review
$3,299.99
$2,949.99
MPN
4U36L6E-ICX2/2T
UPC:
4710483941498
Condition:
New
Support MB: SP2C621D16-2T
Buttons: System Reset, Power
LEDs: Power Status, LAN1/LAN2 activity, System fail, HDD status
I/O Ports: 2 Type-A (USB3.2 Gen1)
Front Side Drive Bay: 20 Hot-swap 3.5" SATA/SAS drive bays* , 4 Hot-swap 3.5" SATA/SAS drive bays* or 4 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays , * Additional RAID/HBA card required to support the 36 x 3.5" SATA/SAS drives
Front Side Backplane: 24-port 12Gbps active backplane, 4-port PCIe3.0 backplane
Rear Side: 12 Hot-swap 3.5'' SATA/SAS drive bays* , 2 Hot-swap 2.5'' NVMe (PCIe3.0 x4) drive bays
Rear Side Bakplane: 12-port 12Gbps active backplane, 2-port PCIe3.0 backplane
Internal Side: 1 M-key (PCIe4.0 x4), supports 22110/2280 form factor [CPU0]
Type: 1+1 Redundant CRPS
Output Watts: 800W @ 100-127Vac input / 1200W @ 200-240Vac input
Efficiency: 80-PLUS Platinum
AC Input: Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz
Fan: 7 PWM Hot-swap 80x38 mm fans
CPU: Supports 3rd Gen Intel® Xeon® Scalable processors
Socket: Dual Socket P+ (LGA 4189)
Thermal Design Power: Up to 205W
Chipset: Intel® C621A
Supported DIMM Quantity: 8+8 DDR4 288-pin DIMM slots (1DPC)
Supported Type: DDR4 288-pin RDIMM, LRDIMM
Max. Capacity per DIMM: RDIMM: up to 64GB, LRDIMM: up to 256GB
Max. DIMM Frequency: RDIMM/ LRDIMM: up to 3200 MHz
Voltage: 1.2V
PCIe x 16: Slot 5: low-profile PCIe 4.0 x16 [CPU1] , Slot 4: low-profile PCIe 4.0 x16 [CPU1] , Slot 3: low-profile PCIe 4.0 x16 [CPU0] , Slot 2: low-profile PCIe 4.0 x16 [CPU0]
PCIe x 8: Slot 1: low-profile PCIe 4.0 x8 [CPU0]
BMC Controller: ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
UID Button/LED: 1 UID w/ LED
VGA Port: 1 DB15 (VGA)
USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
RJ45: 2 RJ45 (10GbE) by Intel® X710 , 1 Realtek RTL8211E for dedicated management GLAN
BIOS Type: AMI 256Mb SPI Flash ROM
BIOS Features: Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.3 and above, ASRock Rack Instant Flash
Temperature: CPU, PCH, MB, Card Side, M.2, DDR4 Temperature Sensing
Fan: Fan Tachometer , CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) , Fan Multi-Speed Control
Voltage: +3.3VSB, +5VSB, +1.83V_VCCIN_P1, +1.83V_VCCIN_P2, +1.2V_VDDQ_ABCD, +1.2V_VDDQ_EFGH, +1.2V_VDDQ_IJKL, +1.2V_VDDQ_MNOP, +PVNN_PCH_AUX, +1.05V_PCH_AUX, +1.8V_PCH_AUX, +BAT, +3.3V, +5V, +12V
Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
Server Computer: Rackmount
Form Factor: 4 U
Delivery by ,
If ordered within hours and minutes
Not Shipping to ?
5 customers are viewing this product

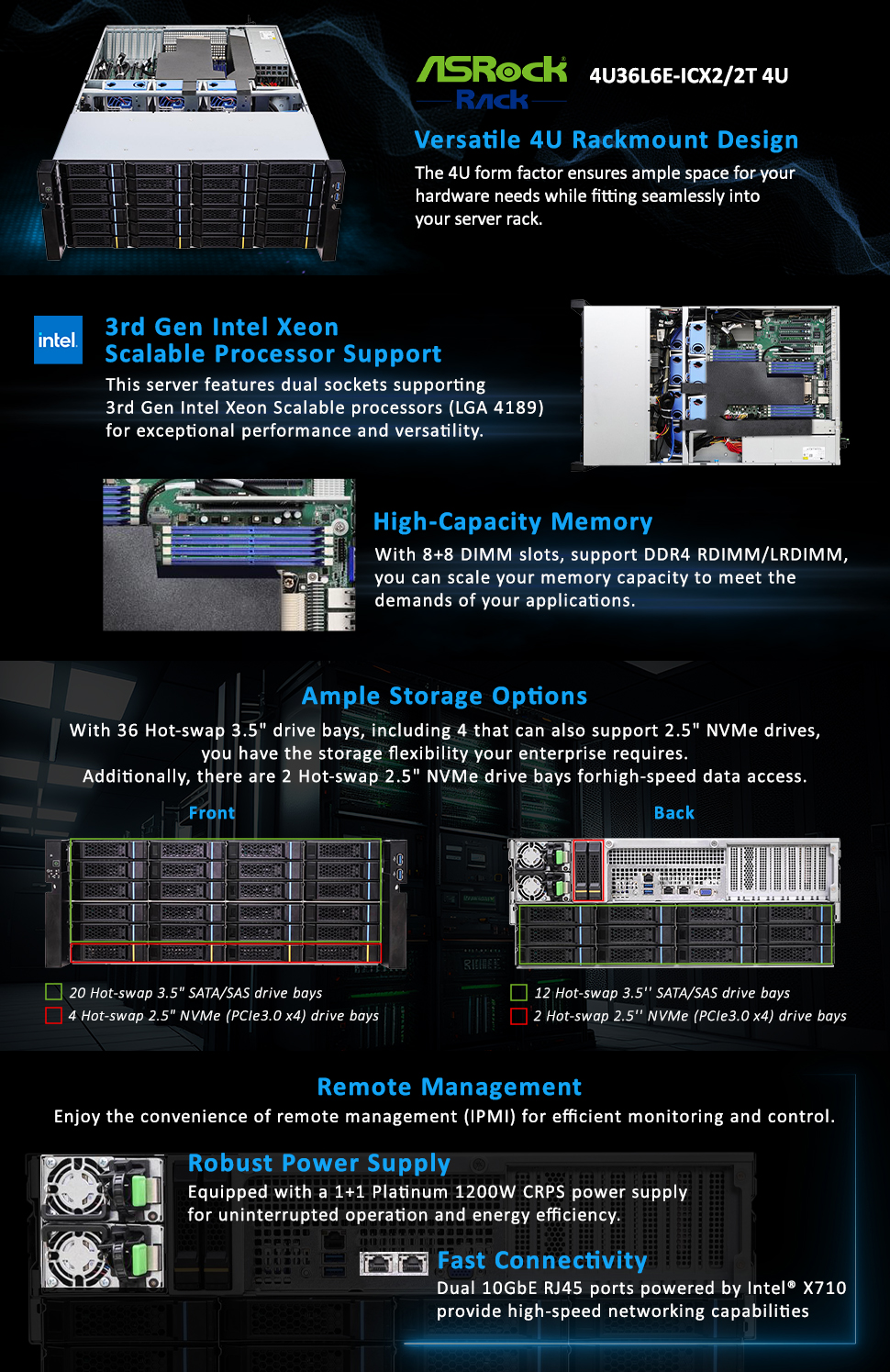

4U36L6E-ICX2/2T


  • 4U Rackmount with 1+1 Platinum 1200W CRPS
  • Dual Socket P+ (LGA 4189), supports 3rd Gen Intel Xeon Scalable processors
  • 8+8 DIMM slots, support DDR4 RDIMM/ LRDIMM
  • 36 Hot-swap 3.5" drive bays and 4 of those can also support 2.5" NVMe drives
  • 2 Hot-swap 2.5'' NVMe drive bays
  • Dual 10GbE RJ45 by Intel® X710
  • Remote management (IPMI)

CPU Support List

Socket Family Number Core Frequency Cache Power Since BIOS
4189 Xeon Scalable 6338N(D1) ICE LAKE 2.2GHz 48MB 185W All
4189 Xeon Scalable 6346(D1) ICE LAKE 3.1GHz 36MB 205W All
4189 Xeon Scalable 8352Y(D1) ICE LAKE 2.2GHz 48MB 205W All
4189 Xeon Scalable 6338N(D2) ICE LAKE 2.2GHz 48MB 185W All
4189 Xeon Scalable 6326(M1) ICE LAKE 2.9GHz 24MB 185W All
4189 Xeon Scalable 8352V(D2) ICE LAKE 2.1GHz 54MB 195W All
4189 Xeon Scalable 4309Y(M1) ICE LAKE 2.8GHz 12MB 105W All
4189 Xeon Scalable 4310(M1) ICE LAKE 2.1GHz 18MB 120W All
4189 Xeon Scalable 4310T(M1) ICE LAKE 2.3GHz 15MB 105W All
4189 Xeon Scalable 4314(M1) ICE LAKE 2.4GHz 24MB 135W All
4189 Xeon Scalable 4316(M1) ICE LAKE 2.3GHz 30MB 150W All
4189 Xeon Scalable 5315Y(M1) ICE LAKE 3.2GHz 12MB 140W All
4189 Xeon Scalable 5318N(M1) ICE LAKE 2.1GHz 36MB 150W All
4189 Xeon Scalable 5320T(M1) ICE LAKE 2.3GHz 30MB 150W All
4189 Xeon Scalable 5317(M1) ICE LAKE 3.0GHz 18MB 150W All
4189 Xeon Scalable 5318Y(M1) ICE LAKE 2.1GHz 36MB 165W All
4189 Xeon Scalable 5318S(M1) ICE LAKE 2.1GHz 36MB 165W All
4189 Xeon Scalable 6338(D1) ICE LAKE 2.0GHz 48MB 205W All
4189 Xeon Scalable 6336Y(M1) ICE LAKE 2.4GHz 36MB 185W All
4189 Xeon Scalable 6330(D1) ICE LAKE 2.0GHz 42MB 205W All
4189 Xeon Scalable 6338T(M1) ICE LAKE 2.1GHz 36MB 165W All
4189 Xeon Scalable 6334(M1) ICE LAKE 3.6GHz 18MB 165W All
4189 Xeon Scalable 8352M(D2) ICE LAKE 2.3GHz 48MB 185W All
4189 Xeon Scalable 6330N(D2) ICE LAKE 2.2GHz 42MB 165W All
4189 Xeon Scalable 5320(M1) ICE LAKE 2.2GHz 39MB 185W All


Memory QVL

Type Speed DIMM Size Vendor Module Part No Cell
DDR4 3200 RDIMM 64GB Micron MTA36ASF8G72PZ-3G2B2VI IRB45D9XPD Micron
DDR4 3200 RDIMM 64GB Samsung M393A8G40AB2-CWEBY K4AAG045WA BCWE Sec

Support MB: SP2C621D16-2T
Buttons: System Reset, Power
LEDs: Power Status, LAN1/LAN2 activity, System fail, HDD status
I/O Ports: 2 Type-A (USB3.2 Gen1)
Front Side Drive Bay: 20 Hot-swap 3.5" SATA/SAS drive bays* , 4 Hot-swap 3.5" SATA/SAS drive bays* or 4 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays , * Additional RAID/HBA card required to support the 36 x 3.5" SATA/SAS drives
Front Side Backplane: 24-port 12Gbps active backplane, 4-port PCIe3.0 backplane
Rear Side: 12 Hot-swap 3.5'' SATA/SAS drive bays* , 2 Hot-swap 2.5'' NVMe (PCIe3.0 x4) drive bays
Rear Side Bakplane: 12-port 12Gbps active backplane, 2-port PCIe3.0 backplane
Internal Side: 1 M-key (PCIe4.0 x4), supports 22110/2280 form factor [CPU0]
Type: 1+1 Redundant CRPS
Output Watts: 800W @ 100-127Vac input / 1200W @ 200-240Vac input
Efficiency: 80-PLUS Platinum
AC Input: Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz
Fan: 7 PWM Hot-swap 80x38 mm fans
CPU: Supports 3rd Gen Intel® Xeon® Scalable processors
Socket: Dual Socket P+ (LGA 4189)
Thermal Design Power: Up to 205W
Chipset: Intel® C621A
Supported DIMM Quantity: 8+8 DDR4 288-pin DIMM slots (1DPC)
Supported Type: DDR4 288-pin RDIMM, LRDIMM
Max. Capacity per DIMM: RDIMM: up to 64GB, LRDIMM: up to 256GB
Max. DIMM Frequency: RDIMM/ LRDIMM: up to 3200 MHz
Voltage: 1.2V
PCIe x 16: Slot 5: low-profile PCIe 4.0 x16 [CPU1] , Slot 4: low-profile PCIe 4.0 x16 [CPU1] , Slot 3: low-profile PCIe 4.0 x16 [CPU0] , Slot 2: low-profile PCIe 4.0 x16 [CPU0]
PCIe x 8: Slot 1: low-profile PCIe 4.0 x8 [CPU0]
BMC Controller: ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
UID Button/LED: 1 UID w/ LED
VGA Port: 1 DB15 (VGA)
USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
RJ45: 2 RJ45 (10GbE) by Intel® X710 , 1 Realtek RTL8211E for dedicated management GLAN
BIOS Type: AMI 256Mb SPI Flash ROM
BIOS Features: Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.3 and above, ASRock Rack Instant Flash
Temperature: CPU, PCH, MB, Card Side, M.2, DDR4 Temperature Sensing
Fan: Fan Tachometer , CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) , Fan Multi-Speed Control
Voltage: +3.3VSB, +5VSB, +1.83V_VCCIN_P1, +1.83V_VCCIN_P2, +1.2V_VDDQ_ABCD, +1.2V_VDDQ_EFGH, +1.2V_VDDQ_IJKL, +1.2V_VDDQ_MNOP, +PVNN_PCH_AUX, +1.05V_PCH_AUX, +1.8V_PCH_AUX, +BAT, +3.3V, +5V, +12V
Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
Server Computer: Rackmount
Form Factor: 4 U
