Qnap

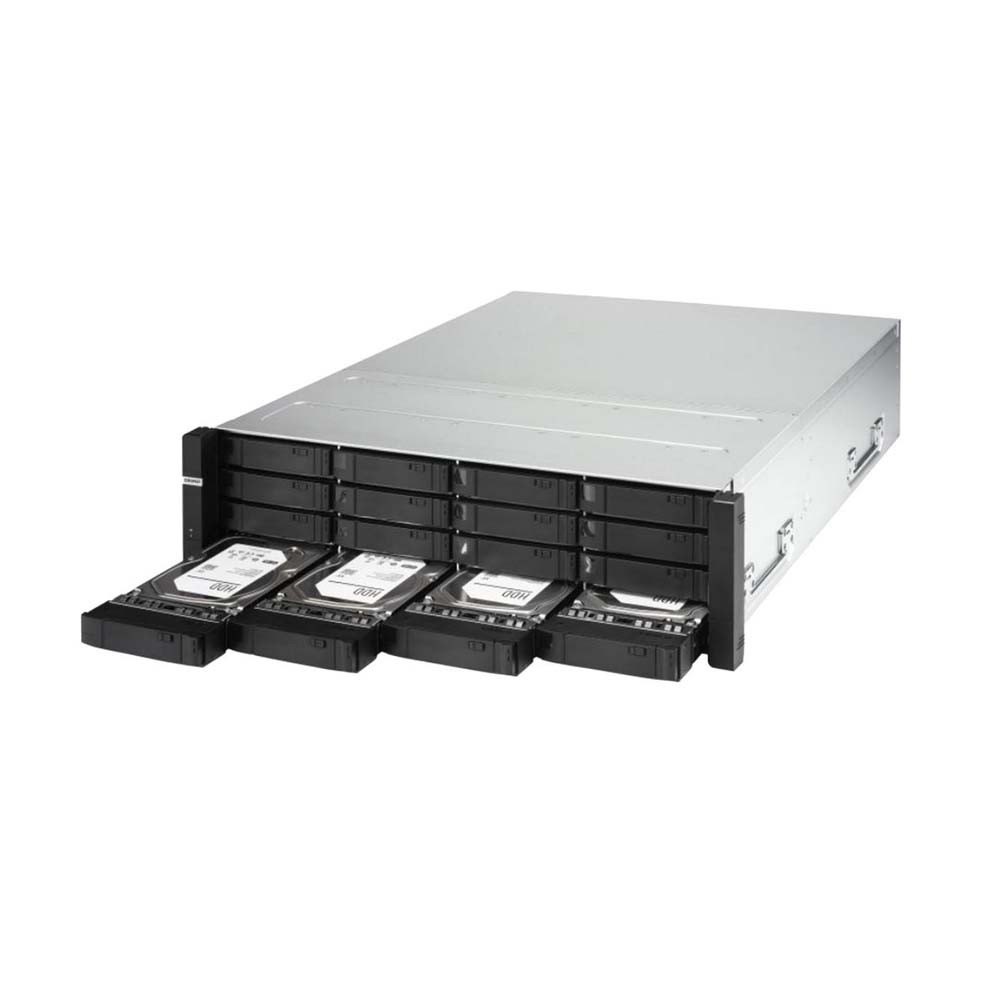

Qnap ES1686dc-2142IT-128G 16-Bay Dual Controller ZFS NAS and iSCSI/ IP-SAN 3U SAS 12G Network Storage
Features :
- Intel Xeon D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
- CPU Architecture: 64-bit x86 Processor
- 10 Gigabit Ethernet Port: 4 x 10GbE SFP+ for each controller
- Gigabit Ethernet Port (RJ45): 3 for each controller (one for remote management)
- USB 3.0 port: 2 per each controller
Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.
-
Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability.
-
Battery-protected DRAM write to cache data protection and Flash read acceleration provides industry-leading random access performance.
-
Two M.2 SSD slots allow for implementing SSD cache acceleration.
-
Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer.
-
Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.
-
Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.
Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.
-
-
Active-Standby single-controller system
With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.
-
-
Active-Active dual-controller system
Both controllers of the ES1686dc can carry traffic, along with Copy-To-Flash protection against power failure and the dual-path SAS interface. Besides conserving computing resources, a high-speed, uninterrupted, and high-availability storage service is also provided through communication protocols such as SMB, NFS and iSCSI.
Intel® Xeon® D dual-controller ensures high availability and failure-resistant service
Powered by two Intel® Xeon® D processors, the ES1686dc features a dual active-active controller architecture that provides failover/failback operations as the standby controller can quickly take over if one controller breaks down. Redundant hot-swappable power supplies and cooling fans are also included to provide businesses with near-zero downtime high availability. The ES1686dc connects to the JBOD enclosure (EJ1600 v2) via the dual-path mini-SAS design to sustain continuous operations even if a JBOD cable is disconnected. Designed around redundancy, the ES1686dc is the best realization of reliable enterprise storage for uninterrupted mission-critical enterprise tasks and productivity.
Multi-level cache technology with both read and write
The ES1686dc simultaneously supports main memory read cache (L1 ARC), SSD secondary read cache (L2 ARC), and memory write cache (ZFS Intent Log) to meet performance demands for various enterprise applications.
-
Up to 512 GB main memory
Each controller has eight RDIMM slots, allowing for up to 512 GB memory.
Note: The main memory will retain 8GB for use by the read cache. -
M.2 SSD cache
Two M.2 SSD slots (support PCIe Gen3 x4 or SATA 6Gb/s SSDs) provide the ability to enable SSD caching to increase IOPS performance.
Note: M.2 SSDs sold separately. -
NVRAM cache reduces the risk of losing write cache data
If unplanned power outages occur, the system can write cache data from the battery-protected DRAM to M.2 SSD through Copy To Flash (C2F) to ensure that data is not lost.
Note: To ensure write cache data safety, it is recommended to annually replace the BBU. QNAP provides one-year warranty for the BBU.
PCIe expansion for 40GbE high-speed networks
The ES1686dc provides two PCIe Gen3 x8 slots connected to the CPU, allowing you to install lightning-fast 10GbE/40GbE network cards to boost virtualization, media streaming, and other bandwidth-demanding applications. Installing Mellanox® Smart NICs further adds support for iSER for improved VMware® virtualization performance. You can also install a QM2 expansion card (QM2-4P-384) to add four additional M.2 2280 PCIe NVMe SSD slots to burst reading performance with SSD caching, or a SAS expansion card (SAS-12G2E) for connecting up to seven 16-bay EJ1600 v2 expansion enclosures to seamlessly expand the potential storage capacity over 1PB, with unprecedented performance of up to 48Gbps per host connection.
