Gigabyte

Gigabyte Intel Core Ultra (Series 2) LGA 1851 Motherboard, ATX, DDR5, 3X M.2, PCIe 5.0, USB C, 2.5GbE LAN Z890 UD WIFI6E

$229.99
MPN
Z890 UD WIFI6E
UPC:
889523045336
Condition:
New
CPU: LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset: Intel Z890 Express Chipset
Memory: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Onboard Graphics: 1 x USB4 USB Type-C port; 1 x DisplayPort
Audio: Realtek Audio CODEC High Definition Audio
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module: Intel Wi-Fi 6E AX211 (PCB rev. 1.0); Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
Expansion Slots (CPU): 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots (Chipset): 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2); 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface (CPU): 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Storage Interface (Chipset): 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); 4 x SATA 6Gb/s connectors
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
Operating System: Support for Windows 11 64-bit
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
5 customers are viewing this product

Z890 UD WIFI6E LGA1851 Motherboard

Z890 UD WIFI6E

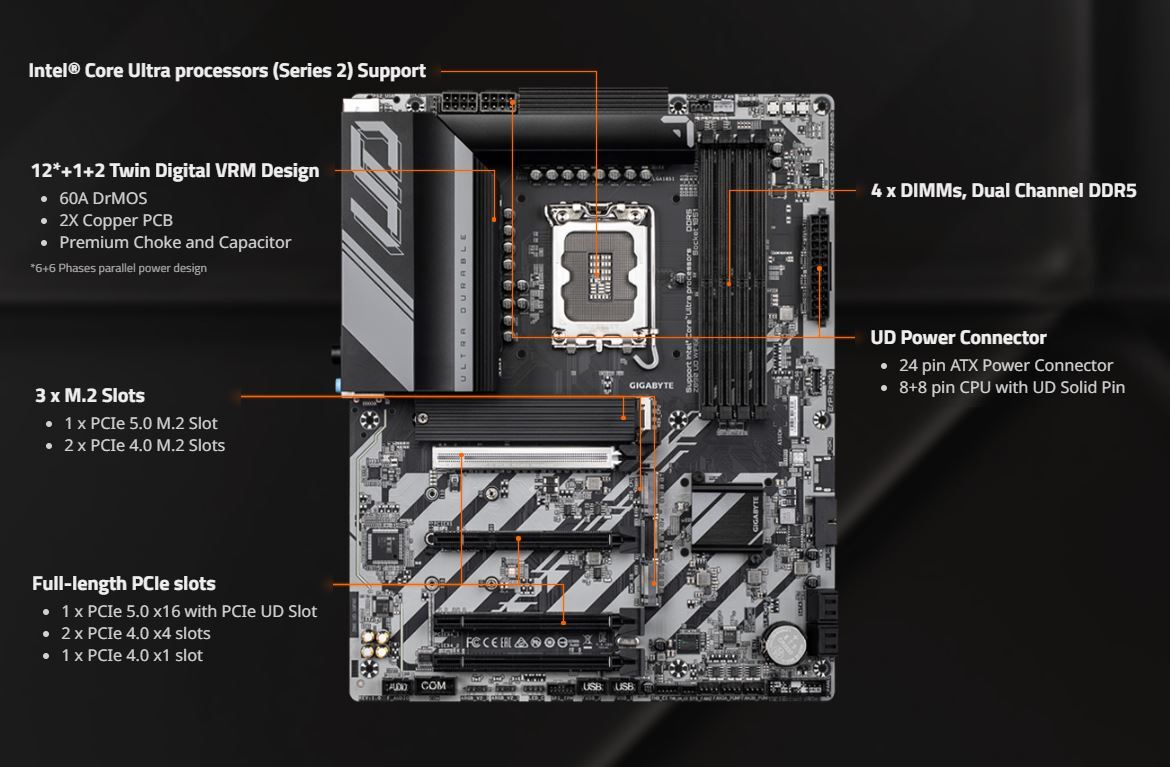

The Gigabyte Z890 UD WIFI6E motherboard is built to harness the full potential of Intel Core Ultra Series 2 CPUs on the latest LGA 1851 socket. Featuring a robust VRM design and advanced thermal solutions, it ensures stable performance for demanding workloads, gaming, and content creation. Its ATX form factor offers maximum expandability and power for future-proof builds.

Equipped with DDR5 memory support, PCIe 5.0 slots, and triple M.2 connectors, this motherboard delivers lightning-fast data transfer, ultra-responsive performance, and seamless multitasking. Onboard USB-C, 2.5GbE LAN, and built-in WiFi 6E provide cutting-edge networking and peripheral connectivity, perfect for high-speed gaming and streaming.

The Z890 UD WIFI6E features durable components, enhanced BIOS, and smart fan controls for optimal customization and thermal management. Whether you're building a high-end gaming rig or a powerful workstation, this motherboard delivers the stability, performance, and speed that advanced users demand—all in a clean, modern layout from Gigabyte.

CPU: LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Chipset: Intel Z890 Express Chipset
Memory: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Onboard Graphics: 1 x USB4 USB Type-C port; 1 x DisplayPort
Audio: Realtek Audio CODEC High Definition Audio
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module: Intel Wi-Fi 6E AX211 (PCB rev. 1.0); Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
Expansion Slots (CPU): 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Expansion Slots (Chipset): 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2); 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface (CPU): 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Storage Interface (Chipset): 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); 4 x SATA 6Gb/s connectors
Form Factor: ATX Form Factor; 30.5cm x 24.4cm
Operating System: Support for Windows 11 64-bit
BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
