Gigabyte

Gigabyte 1U Rack Server Barebone - AMD EPYC 9004, Dual CPU, 3x M.2 Gen3, 12x SATA/SAS Bays R183-Z92-AAD3

$3,199.99
MPN
R183-Z92-AAD3
UPC:
889523041529
Condition:
New
Availability:
Available
Form Factor: Rackmount
Rack Height: 1U
Dimensions: 42 x 24 x 10 inch
Motherboard: MZ93-FS0
Number of CPUs: 2
CPU: AMD EPYC 9004
CPU Specifications: Up to 128-core, 256 threads per processor, cTDP up to 300W at ambient 35C
GPU Integrated: Yes
Number of DIMM Slots: 24 x DIMM slots
Memory Supported: 12-Channel RDIMM, DDR5 memory supported only
NIC (LAN): 2 x 1GbE LAN ports (1 x Intel I350-AM2) Support NCSI function
NIC (Management): 1 x 10/100/1000 management LAN
Expansion Slots: 2 x PCIe Gen5 x16 FHHL slots2 x PCIe Gen5 x16 OCP 3.0 slots - Supporte NCSI function2 x M.2 slots (M-key, PCIe Gen3 x4, NGFF-2280/22110)1 x M.2 slot (M-key, PCIe Gen3 x2, NGFF-2280/22110)
Expansion Bays: 12 x 2.5" SATA/SAS hot-swappable baysSAS card is required for SAS devices support
Power Supply: Dual 1600W 80 PLUS Platinum redundant power supply
5 customers are viewing this product

Select Your Components

R183-Z92-AAD3

Rack Server - AMD EPYC™ 9004 - 1U DP 12-Bay SATA/SAS

Discover the power and reliability of the Gigabyte R183-Z92-AAD3 1U Rack Server, designed for optimal performance in data-intensive environments. This high-density server features a compact 1U form factor, making it ideal for businesses looking to maximize their data center space without compromising on performance.

Equipped with advanced processing capabilities, the R183-Z92-AAD3 supports the latest generation of AMD EPYC processors, ensuring robust computing power to handle demanding workloads. Its scalable architecture allows for significant memory expansion, accommodating up to 2TB of DDR4 RAM, perfect for virtualization, cloud computing, and high-performance applications.

The server’s design emphasizes energy efficiency and thermal management, featuring advanced cooling solutions that maintain optimal operating temperatures. With multiple PCIe slots, it provides flexibility for GPU and storage expansion, catering to a variety of enterprise needs.

Connectivity is seamless with integrated networking options, ensuring rapid data transfer rates and reliable performance. The Gigabyte R183-Z92-AAD3 is also designed with robust security features to protect your data and infrastructure.

Ideal for enterprises seeking a reliable, scalable, and efficient server solution, the Gigabyte R183-Z92-AAD3 1U Rack Server stands out in the competitive market of data center technology. Invest in a server that delivers exceptional performance, scalability, and reliability to future-proof your IT infrastructure.

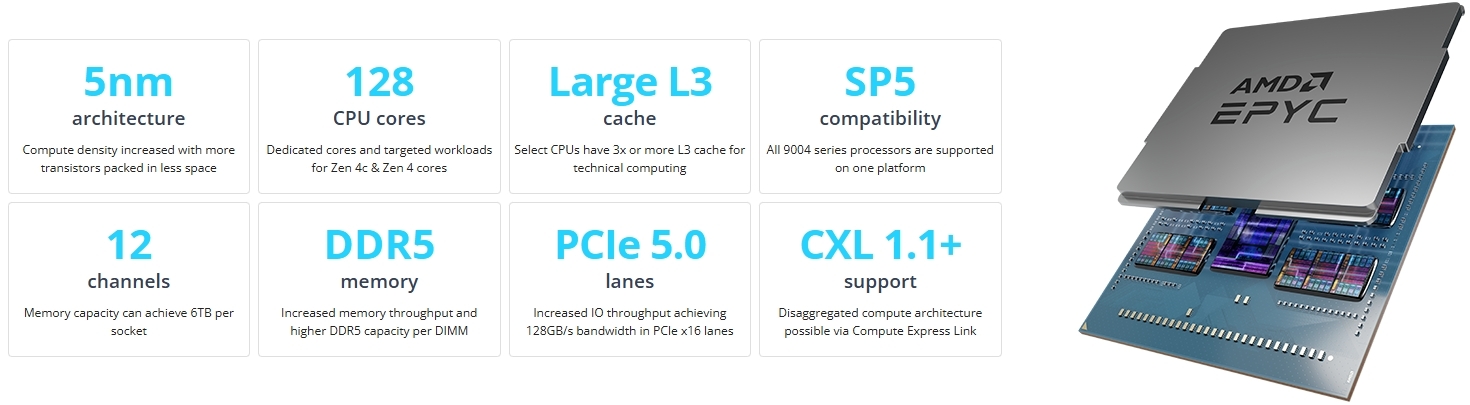

Powering the Next Generation of Server Architecture and Energy Efficiency

The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

4th Gen AMD EPYC Processors for SP5 Socket

Powering the Next Generation of Server Architecture and Energy Efficiency

Select GIGABYTE for the AMD EPYC 9004 Platform

Select GIGABYTE for the AMD EPYC 9004 platform

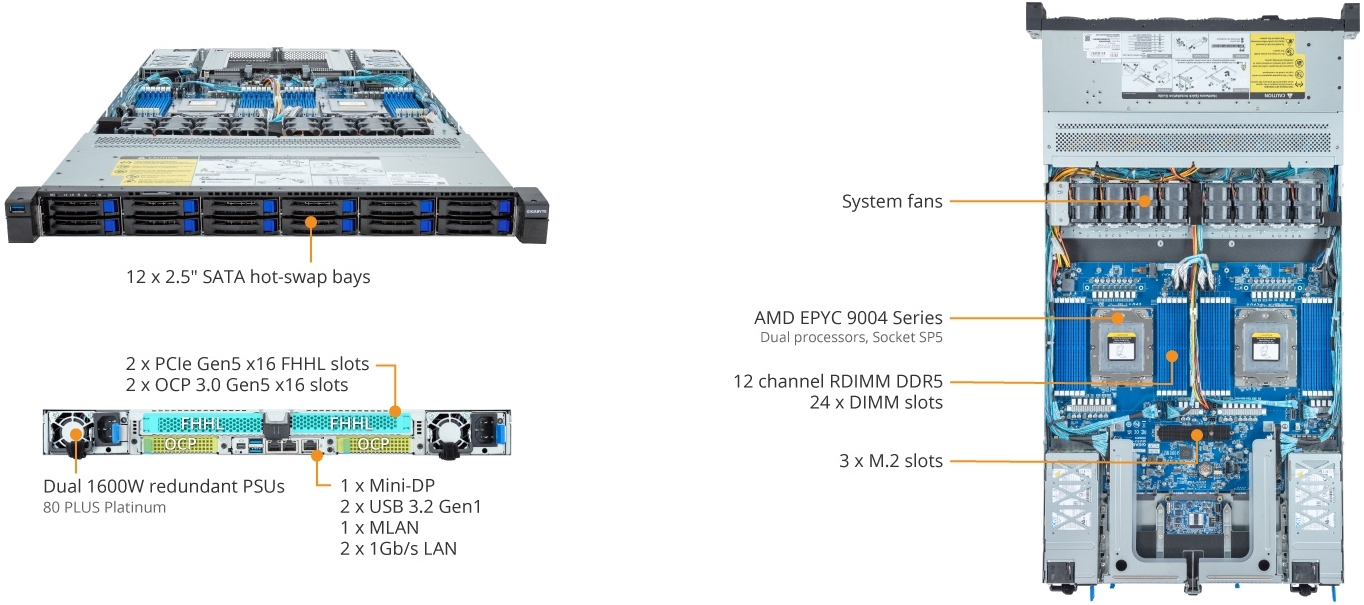

R183-Z92-AAD3 Product Overview

R183-Z92-AAD3 Product Overview

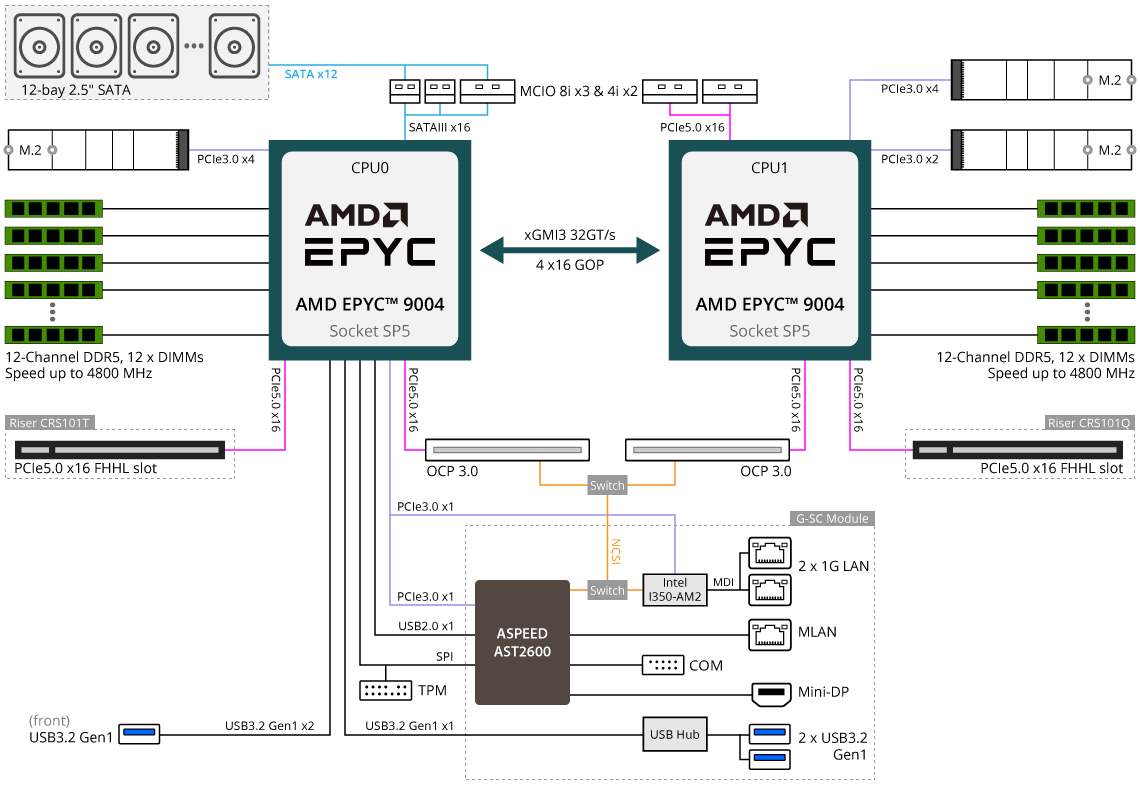

R183-Z92-AAD3 Block Diagram

R183-Z92-AAD3 Block Diagram

Power Efficiency

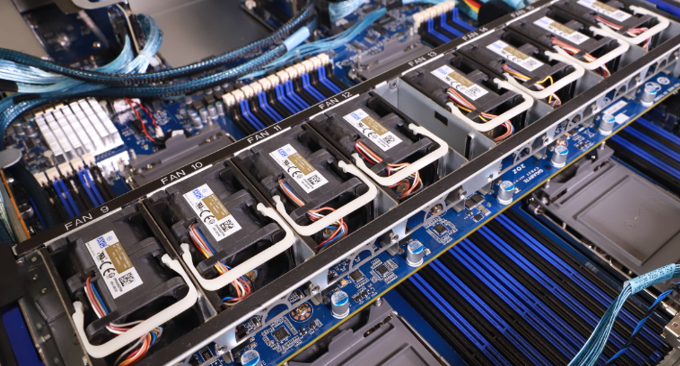

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

User Friendly

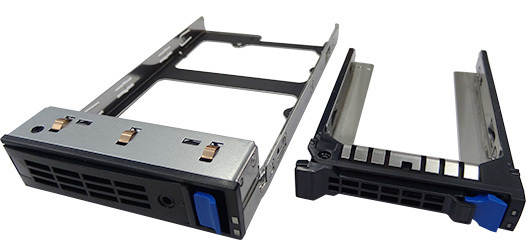

Tool-less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

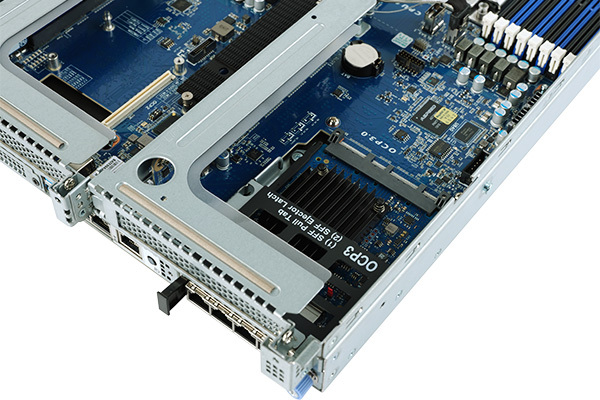

OCP 3.0 Ready

GIGABYTE offers servers that feature an onboard OCP 3.0 slot for the next generation of add on cards. Advantages of this new type include:

  • Easy Serviceability: Simply slot in or pull out the card, without opening the server or using tools
  • Improved thermal design: Horizontal position and optimal heat sink design allow for air cooling to eliminate the heat efficiently

Form Factor: Rackmount
Rack Height: 1U
Dimensions: 42 x 24 x 10 inch
Motherboard: MZ93-FS0
Number of CPUs: 2
CPU: AMD EPYC 9004
CPU Specifications: Up to 128-core, 256 threads per processor, cTDP up to 300W at ambient 35C
GPU Integrated: Yes
Number of DIMM Slots: 24 x DIMM slots
Memory Supported: 12-Channel RDIMM, DDR5 memory supported only
NIC (LAN): 2 x 1GbE LAN ports (1 x Intel I350-AM2) Support NCSI function
NIC (Management): 1 x 10/100/1000 management LAN
Expansion Slots: 2 x PCIe Gen5 x16 FHHL slots2 x PCIe Gen5 x16 OCP 3.0 slots - Supporte NCSI function2 x M.2 slots (M-key, PCIe Gen3 x4, NGFF-2280/22110)1 x M.2 slot (M-key, PCIe Gen3 x2, NGFF-2280/22110)
Expansion Bays: 12 x 2.5" SATA/SAS hot-swappable baysSAS card is required for SAS devices support
Power Supply: Dual 1600W 80 PLUS Platinum redundant power supply
