Asus

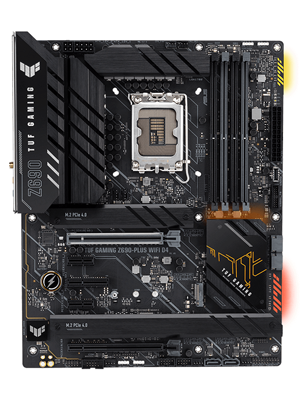

ASUS TUF GAMING Z690-PLUS WIFI D4 LGA1700 ATX Gaming Motherboard (PCIe 5.0, DDR4, 4xM.2/NVMe SSD, 2.5Gb LAN, Thunderbolt 4)

$235.90
MPN
TUF GAMING Z690-PLUS WIFI D4
UPC:
195553438773
Condition:
New
Availability:
Available

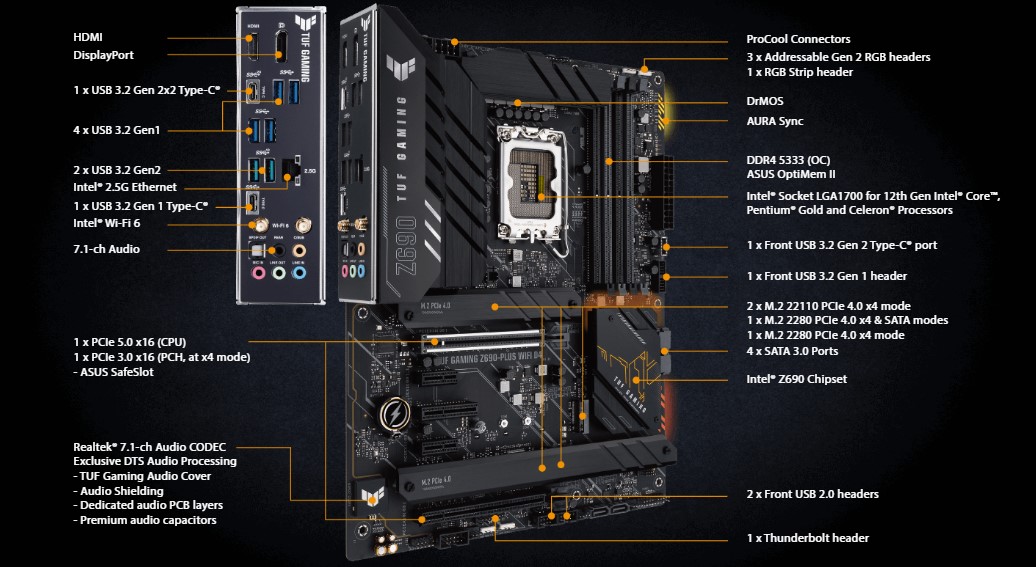

CPU: Intel Socket LGA1700 for 12th Gen Intel Core„, Pentium Gold and Celeron Processors*
Chipset: Intel Z690 Chipset
Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet: 1 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: ATX
Rear USB: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 4 x USB 3.2 Gen 2 ports (4 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
Front USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
5 customers are viewing this product

Durable. Stable. Reliable.

ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.




tuf-gaming-z690-plus-wifi-d4-drmos.jpg tuf-gaming-z690-plus-wifi-d4-cooler-by-design.jpg tuf-gaming-z690-plus-wifi-d4-dram-overclocking-performance.jpg

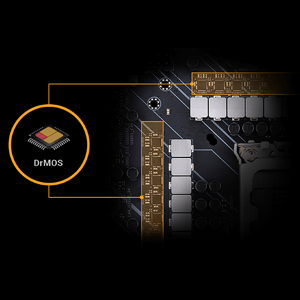

DrMOS
The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand. The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors.



Cooler by Design
1. Enlarged VRM heatsink The extensive surface area of the massive heatsink covers the VRMs and chokes to improve heat dissipation.

2. Enlarged PCH heatsink An expanded surface area for the chipset cooler maximizes performance and heat dissipation.

3. Three M.2 slots with heatsinks Three out of four M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.

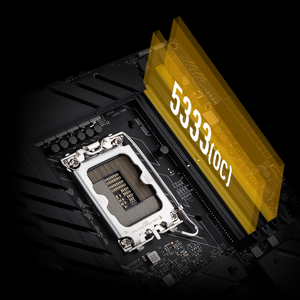

DRAM Overclocking Performance
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

tuf-gaming-z690-plus-wifi-d4-pcie-5.0.jpg tuf-gaming-z690-plus-wifi-d4-safeslot-safedimm.jpg tuf-gaming-z690-plus-wifi-d4-m.2-q-latch.jpg

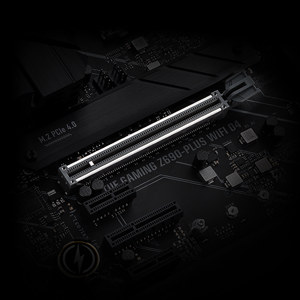

PCIe 5.0
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.

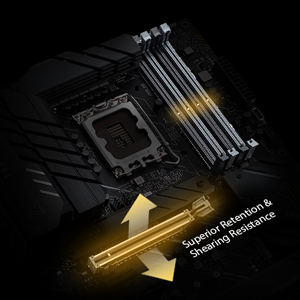

SafeSlot & SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy and confidence.

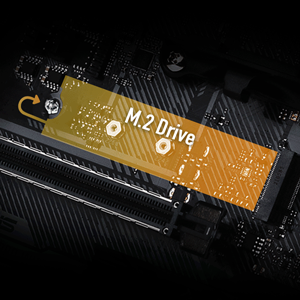

M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.

tuf-gaming-z690-plus-wifi-d4-intel-wifi-6.jpg tuf-gaming-z690-plus-wifi-d4-two-way-ai-noise-cancelation.jpg tuf-gaming-z690-plus-wifi-d4-outshine-the-competition.jpg

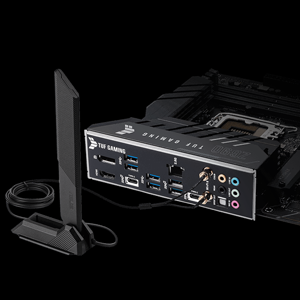

Intel WiFi 6
The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. The WiFi antenna designs with four-way positioning that enables better signal reception, and a magnetic base to secure the antenna on the top or side of the PC case.

Two-Way AI Noise Cancelation
This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls.

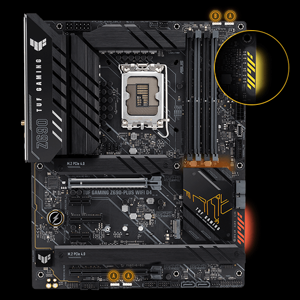

Outshine the Competition
A well-tuned system deserves a matching aesthetic. TUF Gaming Z690 series features edge lighting to enhance its rugged look, and now the PCH heatsink gets RGB lighting to take the style even further. ASUS Aura offers full RGB control with a variety of functional presets for built-in LEDs as well as third-party strips you can connect to onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

CPU: Intel Socket LGA1700 for 12th Gen Intel Core„, Pentium Gold and Celeron Processors*
Chipset: Intel Z690 Chipset
Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet: 1 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: ATX
Rear USB: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 4 x USB 3.2 Gen 2 ports (4 x Type-A), 1 x USB 3.2 Gen 1 port (1 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
Front USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
