Thermaltake Toughpower TF1 1550W 80+ Titanium Full Modular Power Supply, 10 Year Warranty PS-TPD-1550FNFATU-1

(No reviews yet) Write a Review
MSRP: $549.99
$472.99
(You save $77.00 )
SKU:
CCPSTPD1550FNFATU1
UPC:
841163078259
Weight:
11.00 LBS
Shipping:
Calculated at Checkout
Brand: Thermaltake
WATTS: 1550W
RGB FAN: No
FORM FACTOR: ATX
MODEL: TTP-1550AH3FCT
MAX. OUTPUT CAPACITY: 1550W
PEAK OUTPUT CAPACITY: 1860W
COLOR: Black
DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 180mm(D)
WEIGHT: 2.4kg
PFC (POWER FACTOR CORRECTION): Active PFC
POWER GOOD SIGNAL: 100-500 msec
INPUT VOLTAGE: 100V – 240V~
OPERATING TEMPERATURE: 0°C to + 50°C
COOLING SYSTEM: 14cm PWM fan
SAFETY APPROVAL: CE/cTUVus/TÜV/FCC/BSMI/EAC/ CCC
PCI-E CONNECTOR: 8
fbt-product: 4511
fbt-product: 5351
5 customers are viewing this product

Toughpower TF1 1550W - TT Premium Edition
Designed for overclockers, user’s with high-end system demands, and more, the Toughpower TF1 Titanium 1550W delivers 80 PLUS Titanium efficiency to satisfy their needs. Besides the critical features like <30mV low ripple noise, extremely strict Voltage Regulation < ±2%, and Hold up time> 16 milliseconds, Thermaltake also added three vital features to make sure Toughpower TF1 Titanium 1550W can consistently and safely power up the whole system. Firstly, Low Transient Response Secondly, Inrush current <50 Ampere. Lastly, 12V OCP protection is covered. With all the advantages plus a 10-years warranty, the Toughpower TF1 Titanium 1550W can satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

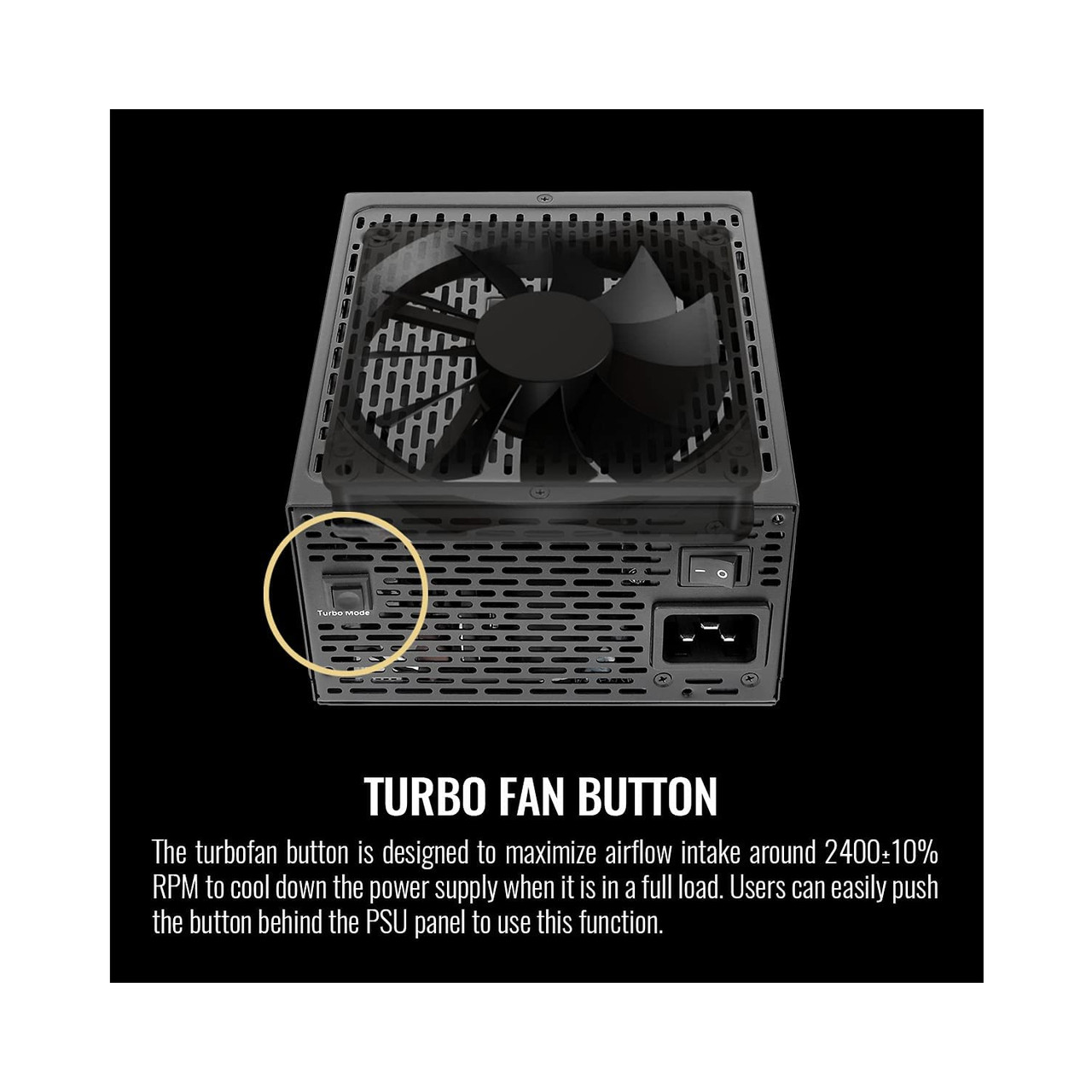

Turbo Fan Button
The turbofan button is designed to maximize airflow intake around 2400±10% RPM to cool down the power supply when it is in a full load. Users can easily push the button behind the PSU panel to use this function.

Extra Jumper Accessory
The Toughpower TF1 Titanium 1550W comes with an extra jumper to provide electricity to the system without connecting to the motherboard. If you need more than one power supply to power up your system, the extra jumper will help a lot.

Low Transient Response
The transient response is a measure of how well the power source can hold its output constant in response to load changes. We make sure that we can keep the results comply with 12V < 1 %, 5V< 3%, and 3.3V < 5% to avoid PSU output voltage deviation causing subsequent equipment malfunction or even shut down.

Inrush current < 50 Ampere
Inrush current is the instantaneous high input current drawn by a power supply or electrical equipment at turn-on. This arises because of the high initial currents required to charge the capacitors, inductors, or transformers. We make sure that the test results are under 50 ampere to avoid damage to the PSU components.

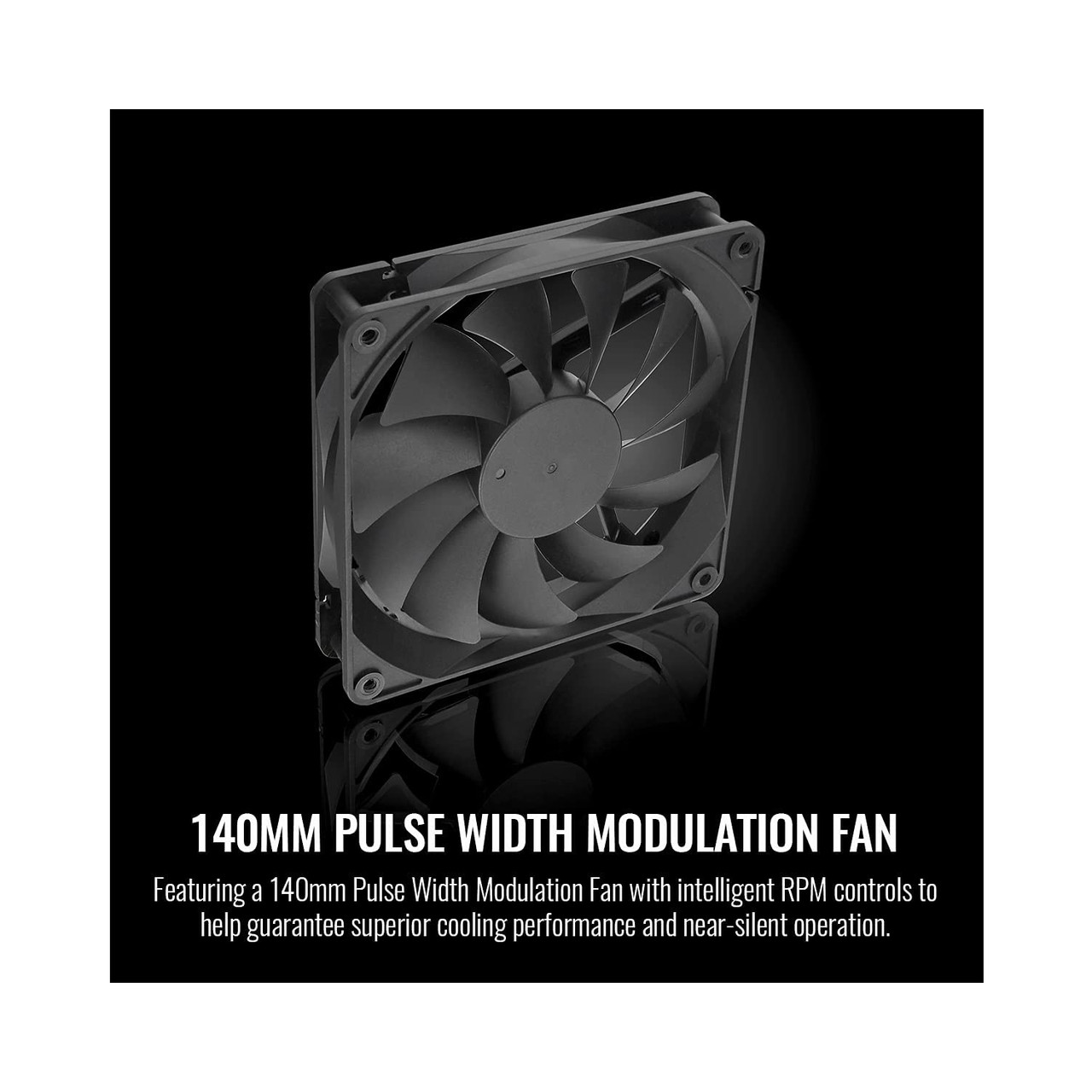

140mm Pulse Width Modulation Fan
Featuring a 140mm Pulse Width Modulation Fan with intelligent RPM controls to help guarantee superior cooling performance and near-silent operation.

Premium Japanese 105°C/221°F Capacitors.
Providing great durability as well as offering the highest stability, while remaining reliable.


Brand: Thermaltake
WATTS: 1550W
RGB FAN: No
FORM FACTOR: ATX
MODEL: TTP-1550AH3FCT
MAX. OUTPUT CAPACITY: 1550W
PEAK OUTPUT CAPACITY: 1860W
COLOR: Black
DIMENSION ( W / H / D ): 150mm(W) x 86mm(H) x 180mm(D)
WEIGHT: 2.4kg
PFC (POWER FACTOR CORRECTION): Active PFC
POWER GOOD SIGNAL: 100-500 msec
INPUT VOLTAGE: 100V – 240V~
OPERATING TEMPERATURE: 0°C to + 50°C
COOLING SYSTEM: 14cm PWM fan
SAFETY APPROVAL: CE/cTUVus/TÜV/FCC/BSMI/EAC/ CCC
PCI-E CONNECTOR: 8
