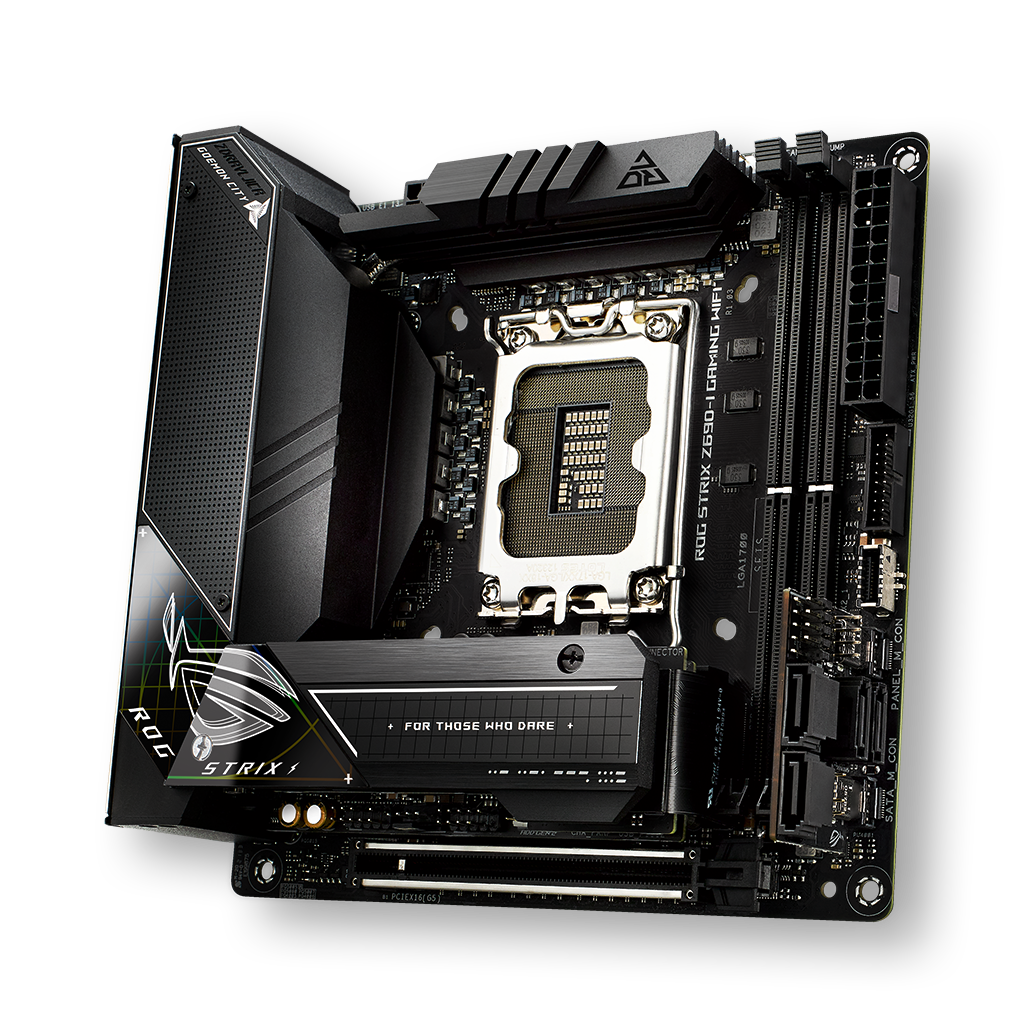

ASUS ROG STRIX Z690-I GAMING WIFI LGA1700 DDR5, WiFi 6E Mini-ITX Gaming Motherboard

(No reviews yet) Write a Review
$389.99
SKU:
CCROGSTRIXZ690IGAMINGWIFI
UPC:
195553460965
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
Model: ROG STRIX Z690-I GAMING WIFI
Socket: LGA1700
CPU Generation: 12th Generation Intel Core Processors
CPU Series: Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Chipset: Intel® Z690
Power Support: 125W
Memory Slot: 2
Memory Type: DDR5
Memory Max: 64GB
Ram Bus: 4800 (OC) , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC)
Graphic: Integrated Graphics Processor (Depends on CPU)
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio
Delivery by ,
If ordered within hours and minutes
Not Shipping to ?
5 customers are viewing this product

ROG STRIX Z690-I GAMING WIFI

Intel® Z690 LGA 1700 ITX motherboard with PCIe® 5.0, 10+1 power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel® 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt™ 4 USB Type-C®, SATA and Aura Sync RGB lighting.

  • Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ Processors and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors.
  • Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
  • Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates.
  • High-performance Networking:On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard.
  • Best Gaming Connectivity: Supports HDMI® 2.1, two M.2 slots, 2 x ThunderboltTM 4 as well as 1 x USB 3.2 Gen 2x2 Type-C®.
  • Intelligent Control:  ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance.
  • DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button.
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers.
  • Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III.
  • Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86






The ROG Strix Z690-I Gaming WiFi packs premium-grade power delivery and triple-decker cooling into a compact mini-ITX form factor to unleash the full force of 12th Gen or 13th Gen Intel® Core™ processors. Meanwhile, cutting-edge performance arrives courtesy of a PCIe® 5.0 expansion slot and DDR5 memory support. Plus, onboard WiFi 6E and PCIe 4.0 M.2 slots bring lightning-fast performance to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process, so even novice builders can quickly get to serious gaming.


Model: ROG STRIX Z690-I GAMING WIFI
Socket: LGA1700
CPU Generation: 12th Generation Intel Core Processors
CPU Series: Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium
Chipset: Intel® Z690
Power Support: 125W
Memory Slot: 2
Memory Type: DDR5
Memory Max: 64GB
Ram Bus: 4800 (OC) , 5000 (OC) , 5200 (OC) , 5400 (OC) , 5600 (OC) , 5800 (OC) , 6000 (OC) , 6200 (OC) , 6400 (OC)
Graphic: Integrated Graphics Processor (Depends on CPU)
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio
